Je Pistons Parts
Product
Price

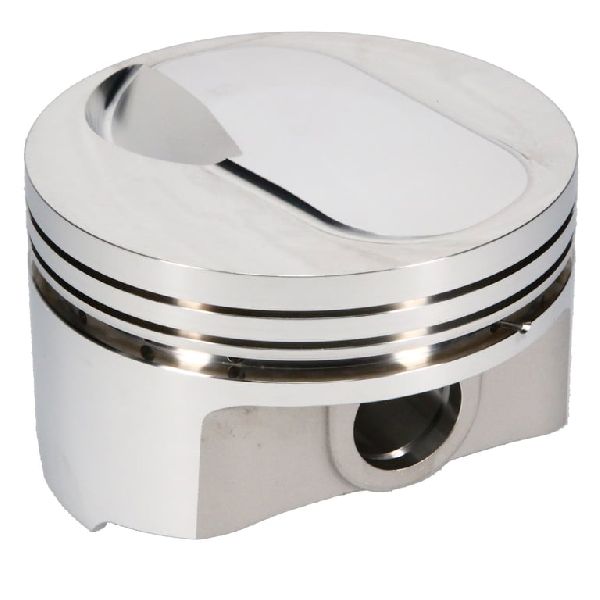

- Piston Set, 4032, Flat Top, 4.030 Bore, 1.560 CD, 0.927 Pin, Set of 8.
- SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Chevrolet 23 Deg 20/30
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.188
- Piston Average Weight: 495
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.030 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.030
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Small Block
- Compression Height: 1.560
- Industry: Automotive
- Title - Web: Srp Chevrolet Small Block Piston Kit - 4.030 In. Bore - 1.560 In. Ch, -5.00 Cc
- Engine: Small Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Make - Web: Chevrolet
- Wrist Pin Length: 2.750
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -5.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.530 Bore, 1.270 CD, 0.990 Pin, Set of 8.
- SRP, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.270 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Open Chamber
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.218
- Piston Average Weight: 610
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.530 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.530
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Big Block
- Compression Height: 1.270
- Industry: Automotive
- Title - Web: Srp Chevrolet Big Block Piston Kit - 4.530 In. Bore - 1.270 In. Ch, -3.00 Cc
- Engine: Big Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.990
- Make - Web: Chevrolet
- Wrist Pin Length: 2.930
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -3.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more

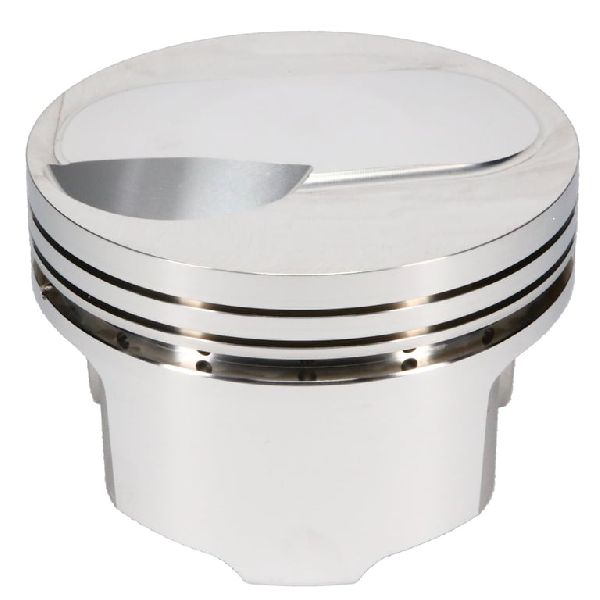

- Piston Set, 4032, Dome, 4.280 Bore, 1.645 CD, 0.990 Pin, Set of 8.
- SRP, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Dome
- Cylinder Head: Open Chamber
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.188
- Piston Average Weight: 622
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.280 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.280
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Big Block
- Compression Height: 1.645
- Industry: Automotive
- Title - Web: Srp Chevrolet Big Block Piston Kit - 4.280 In. Bore - 1.645 In. Ch, 23.00 Cc
- Engine: Big Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.990
- Make - Web: Chevrolet
- Wrist Pin Length: 2.930
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: 23.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- JE Piston Sets -8 Cyl
- JE Pistons 502 BBC 4.5in Bore +1cc Dome Replacement Set of 8 Pistons
- SRP, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Round
- Piston Head Type: Dome
- Cylinder Head: Open Chamber
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.188
- Piston Average Weight: 714
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.500 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.500
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Big Block
- Compression Height: 1.645
- Industry: Automotive
- Title - Web: Srp Chevrolet Big Block Piston Kit - 4.500 In. Bore - 1.645 In. Ch, 1.00 Cc
- Engine: Big Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.990
- Make - Web: Chevrolet
- Wrist Pin Length: 2.930
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: 1.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.040 Bore, 1.560 CD, 0.927 Pin, Set of 8.
- SRP, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Chevrolet 23 Deg 20/30
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.188
- Piston Average Weight: 499
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.040 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.040
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Small Block
- Compression Height: 1.560
- Industry: Automotive
- Title - Web: Srp Chevrolet Small Block Piston Kit - 4.040 In. Bore - 1.560 In. Ch, -5.00 Cc
- Engine: Small Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Make - Web: Chevrolet
- Wrist Pin Length: 2.750
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -5.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 8.
- SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.125 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Chevrolet 23 Deg 20/30
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.218
- Piston Average Weight: 416
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.030 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.030
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Small Block
- Compression Height: 1.125
- Industry: Automotive
- Title - Web: Srp Chevrolet Small Block Piston Kit - 4.030 In. Bore - 1.125 In. Ch, -5.00 Cc
- Engine: Small Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Make - Web: Chevrolet
- Wrist Pin Length: 2.750
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -5.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.030 Bore, 1.300 CD, 0.927 Pin, Set of 8.
- SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.300 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Small Block Ford 20 Deg
- Product Type: Engine Piston Kit
- Make: Ford
- Oil Ring Thickness: 0.188
- Piston Average Weight: 458
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.030 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.030
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Small Block
- Compression Height: 1.300
- Industry: Automotive
- Title - Web: Srp Ford Small Block Piston Kit - 4.030 In. Bore - 1.300 In. Ch, -5.00 Cc
- Engine: Small Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Make - Web: Ford
- Wrist Pin Length: 2.750
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -5.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Wrist Pin, 0.927 in. Diameter, 2.750 in. Length, 0.180 in. Wall, Each.
- Piston Wrist Pin, H13 Tool Steel Alloy, 0.927 in. Diameter, 2.750 in. Length, 0.180 in. Wall, Chamfered End, Each.
- Product Attributes:
- Category Hierarchy:
- Auto>accessories>wrist Pins
- Powersports>accessories>wrist Pins
- Wrist Pin Material: H13 Tool Steel Alloy
- Out of Stock Message: Call For Availability
- Title - Web: Wrist Pin - 0.927 In. Diameter - 2.750 In. Length - 0.180 In. Wall - H13 Material
- Wrist Pin Wall Thickness: 0.180
- Product Type: Engine Piston Wrist Pin
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Wrist Pin Length: 2.750
- Category Hierarchy:
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.030 Bore, 1.165 CD, 0.927 Pin, Set of 8.
- SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.165 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Small Block Ford 20 Deg
- Product Type: Engine Piston Kit
- Make: Ford
- Oil Ring Thickness: 0.218
- Piston Average Weight: 431
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.030 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.030
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Small Block
- Compression Height: 1.165
- Industry: Automotive
- Title - Web: Srp Ford Small Block Piston Kit - 4.030 In. Bore - 1.165 In. Ch, -5.00 Cc
- Engine: Small Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.927
- Make - Web: Ford
- Wrist Pin Length: 2.750
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -5.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
- Piston Set, 4032, Flat Top, 4.280 Bore, 1.645 CD, 0.990 Pin, Set of 8.
- SRP, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.645 CD, Flat Top, 8 Cyl. Piston Kit
- Product Attributes:
- Product Market: Domestic
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Forging Type: Fsr
- Piston Head Type: Flat
- Cylinder Head: Open Chamber
- Product Type: Engine Piston Kit
- Make: Chevrolet
- Oil Ring Thickness: 0.188
- Piston Average Weight: 607
- Piston Series: Srp
- Top Compression Ring Thickness: 0.0640
- Bore Diameter - Web: 4.280 In
- Engine Type: Ice
- Prop 65 (C, R or CR): Cr
- Bore Diameter: 4.280
- Ring Set Included: No
- Piston Material: 4032
- Engine - Web: Big Block
- Compression Height: 1.645
- Industry: Automotive
- Title - Web: Srp Chevrolet Big Block Piston Kit - 4.280 In. Bore - 1.645 In. Ch, -3.00 Cc
- Engine: Big Block
- Second Compression Ring Thickness: 0.0640
- Prop 65 - Short Label: Prop 65 Warning Label.jpg
- Wrist Pin Outer Diameter: 0.990
- Make - Web: Chevrolet
- Wrist Pin Length: 2.930
- Category Hierarchy:
- Auto>srp Pistons>srp
- Auto>srp Pistons>srp>piston Kits
- Out of Stock Message: Please Allow Approximately 3 Weeks Or Less For Shipping
- Wrist Pin Wall Thickness: 0.150
- Piston Volume: -3.00
-
Features:
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
- Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
-
Fitment Warning:
- This is a Universal/Non Application Specific Product. To install this part, you made need to cut, weld, or make other modifications to your vehicle.
This item is not specific to any vehicle. Click here to learn more
Showing 1 - 10 of 16 products
Loading...
