Product
Price
- New CV Inner Shaft
- Jackshaft
- New CV Inner Shaft
- CV Intermediate Shaft
- Product Attributes:
- Number Of Outboard Splines: 31
- Number Of Inboard Splines: 31
- Outboard Shaft Connection Style: Spline
- Boot Material: Neoprene
- Overall Compressed Length (mm): 379
- Overall Compressed Length (in): 14.92
- Inboard Shaft Connection Style: Spline
- Limited Lifetime Warranty. ISO 9001:2008 and TS 16949:2009 Certified Company
This Part Fits the Following OEM/Substitute Numbers:
15164N, HO-3516
Additional Fitment Information:
| Vehicle | Block | CC | Transmission | Position | Engine | Drive Type | CID |
|---|---|---|---|---|---|---|---|
| 2014 - Honda Accord | V | 3471 | Automatic CVT | Front Right | 6 Cyl 3.5L | FWD | - |

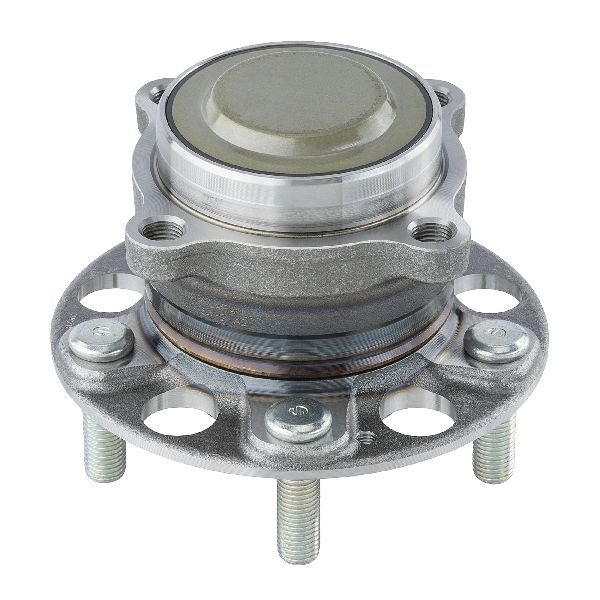

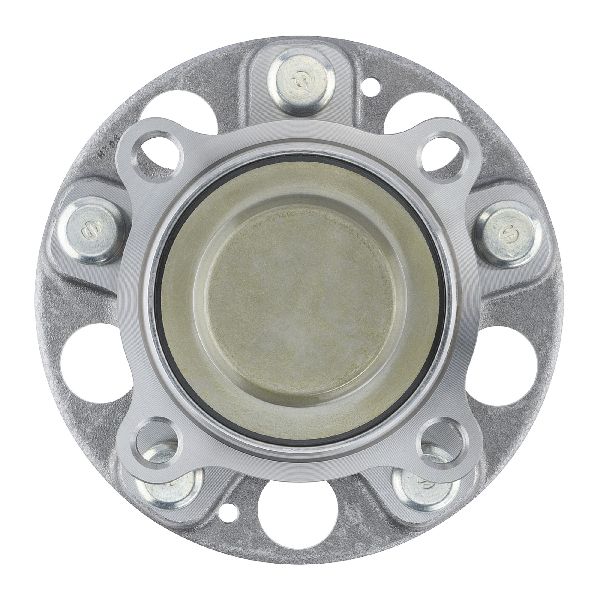

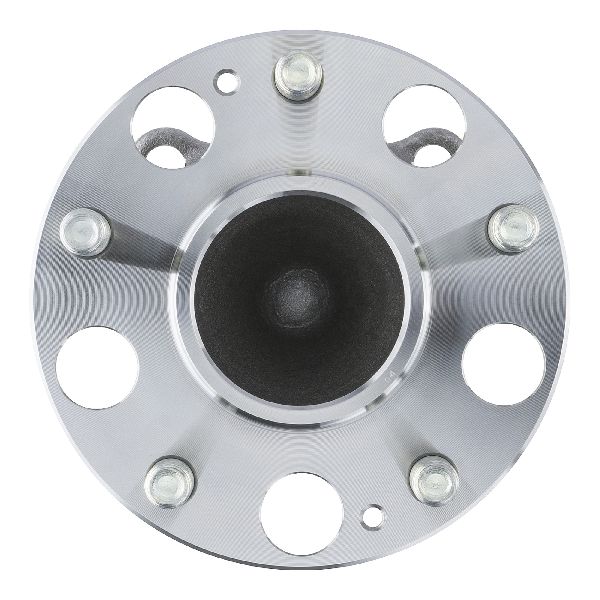

- Wheel Bearing and Hub Assembly
- MOOG 512501 Hub Assembly
- Product Attributes:
- Flange Bolt Hole Quantity: 4
- Brake Pilot Diameter: 64.100
- Flange Offset: 61.500
- Flange Shape: Square
- Bolt Circle Diameter:
- 114.000
- 4.500
- Hub Pilot Diameter: 81.800
- Wheel Pilot Diameter: 64.100
- Spline Quantity: 23
- Wheel Stud Quantity: 5
-
Features:
- EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
- KEEPS WATER AND DIRT OUT -- Quad lip seal design inhibits damage by keeping moisture and other contaminants out
- EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
- CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
- Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
-
Suggested Purchase Quantity: 2
- Most jobs typically require 2 of this item.
This Part Fits the Following OEM/Substitute Numbers:
42200T0A951, HA590461
Additional Fitment Information:
| Vehicle | Position | Drive Type |
|---|---|---|
| 2014 - Honda CR-V | Rear | AWD |
- Wheel Bearing and Hub Assembly
- MOOG 513267 Hub Assembly
- Product Attributes:
- Flange Bolt Hole Quantity: 4
- Brake Pilot Diameter: 70.000
- Flange Offset: 47.200
- Flange Shape: Modified
- Bolt Circle Diameter:
- 120.000
- 4.724
- Hub Pilot Diameter: 88.700
- Wheel Pilot Diameter: 64.000
- Spline Quantity: 30
- Wheel Stud Quantity: 5
-
Features:
- EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
- KEEPS WATER AND DIRT OUT -- Quad lip seal design inhibits damage by keeping moisture and other contaminants out
- EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
- CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
- Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
-
Suggested Purchase Quantity: 2
- Most jobs typically require 2 of this item.
This Part Fits the Following OEM/Substitute Numbers:
051-6408, 400.40003, 400.40003E, 44300-STX-A01, 516408, 735-0017, BR930720, BRG BR930720, H513267, HA590228
Additional Fitment Information:
| Vehicle | Position |
|---|---|
| 2014 - Honda Pilot | Front |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
Additional Fitment Information:
| Vehicle | Position | Sub Model |
|---|---|---|
| 2014 - Honda Civic | Front | Hybrid |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
- This bearing is equipped with an internal ABS sensor magnet. Care must be taken during installation to insure that the sensor magnet is located on the correct side of the bearing housing. Failure to do so may cause a malfunction in the ABS system. For more info, refer to the appropriate section of your service manual or check with your local dealer.
Additional Fitment Information:
| Vehicle | Position |
|---|---|
| 2014 - Honda Crosstour | Front |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
- This bearing is equipped with an internal ABS sensor magnet. Care must be taken during installation on vehicles with ABS to insure that the sensor magnet is located on the correct side of the bearing housing. Failure to do so may cause a malfunction in the ABS system. For more info, refer to the factory service information or check with your local dealer.
Additional Fitment Information:
| Vehicle | Position |
|---|---|
| 2014 - Honda CR-V | Front |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
- Wheel bearing is serviced separately.
Additional Fitment Information:
| Vehicle | Position | Sub Model |
|---|---|---|
| 2014 - Honda Civic | Front | Hybrid |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
- This bearing is equipped with an internal ABS sensor magnet. Care must be taken during installation to insure that the sensor magnet is located on the correct side of the bearing housing. Failure to do so may cause a malfunction in the ABS system. For more info, refer to the appropriate section of your service manual or check with your local dealer.
Additional Fitment Information:
| Vehicle | Position | Sub Model |
|---|---|---|
| 2014 - Honda Civic | Front | Si |
- This Original Equipment Manufacturer part is the same part that was made & installed by the car manufacturer at the factory where the car was produced.
Additional Fitment Information:
| Vehicle | Position | Sub Model |
|---|---|---|
| 2014 - Honda Civic | Front | Si |
- Wheel Bearing and Hub Assembly
- MOOG 512544 Hub Assembly
- Product Attributes:
- Flange Bolt Hole Quantity: 4
- Brake Pilot Diameter: 64.100
- Flange Offset: 58.800
- Bolt Circle Diameter: 114.300
- Hub Pilot Diameter: 72.000
- Wheel Pilot Diameter: 64.100
- Wheel Stud Quantity: 5
-
Features:
- RELIABLE PERFORMANCE -- Precise roll-form design ensures consistent and optimal factory-installed preload to minimize excessive noise and wear
- EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
- KEEPS WATER AND DIRT OUT -- Quad lip seal design inhibits damage by keeping moisture and other contaminants out
- EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
- CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
- Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
-
Suggested Purchase Quantity: 2
- Most jobs typically require 2 of this item.
This Part Fits the Following OEM/Substitute Numbers:
051-6447, 42200-T2A-A51, BR930856, WE60616
Additional Fitment Information:
| Vehicle | Position | Fuel Type |
|---|---|---|
| 2014 - Honda Accord | Rear | GAS |
