Product
Price

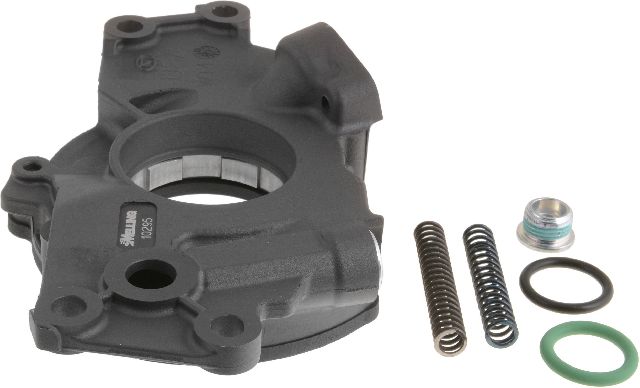

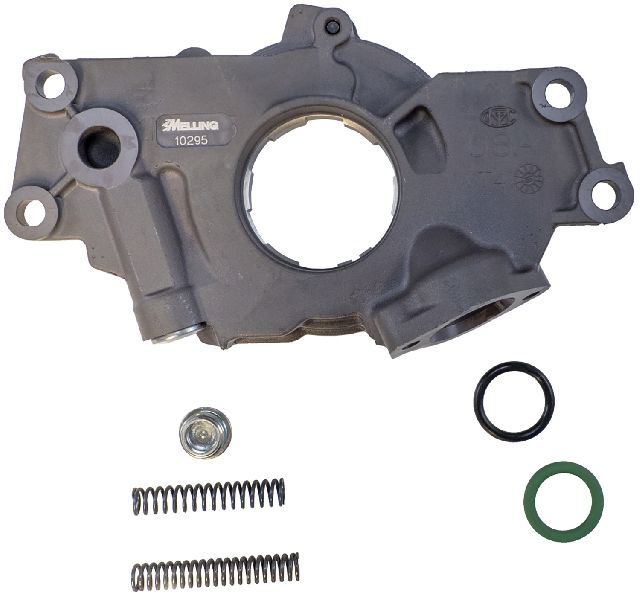

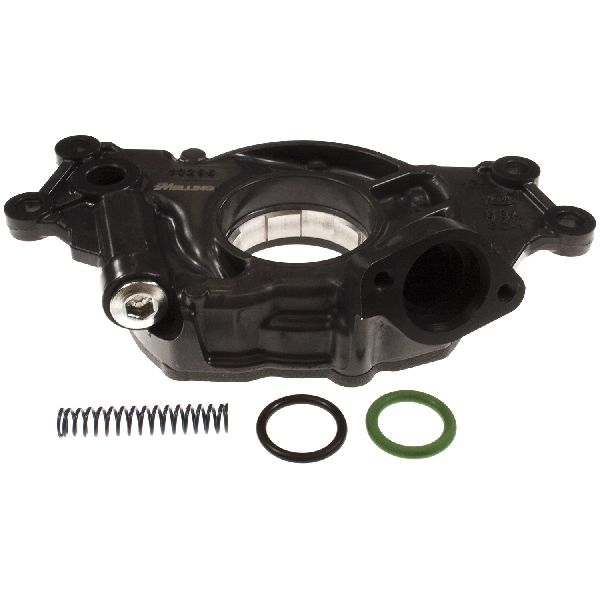

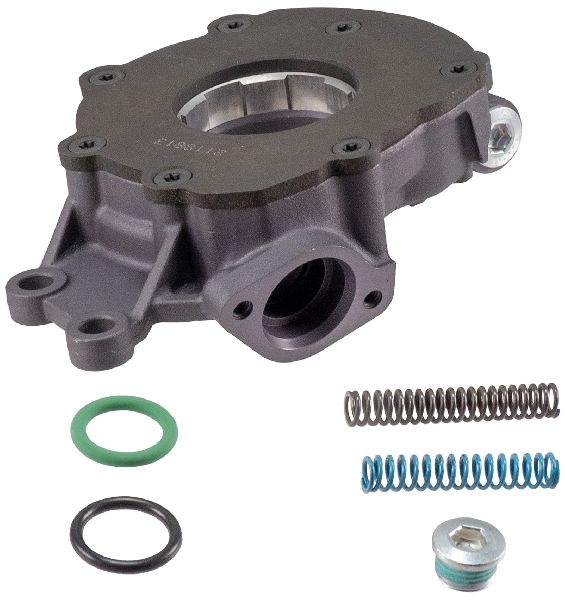

- High Performance Oil Pump
- Stock Volume +10 PSI Higher Pressure Over Stock Pressure, High Performance Oil Pump Hard Coat Anodized Aluminum Housing Exclusive Rotor Design For Improved Strength Phosphate Coated Cast Iron Cover Includes Optional Standard And +25 PSI Pressure Springs Threaded Pressure Relief Nut Uses 7/8 Inch Stock Bolt-On Oil Pickup Tube Includes O-Ring For Oil Pickup Tube

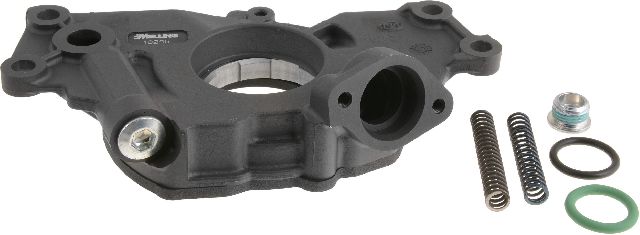

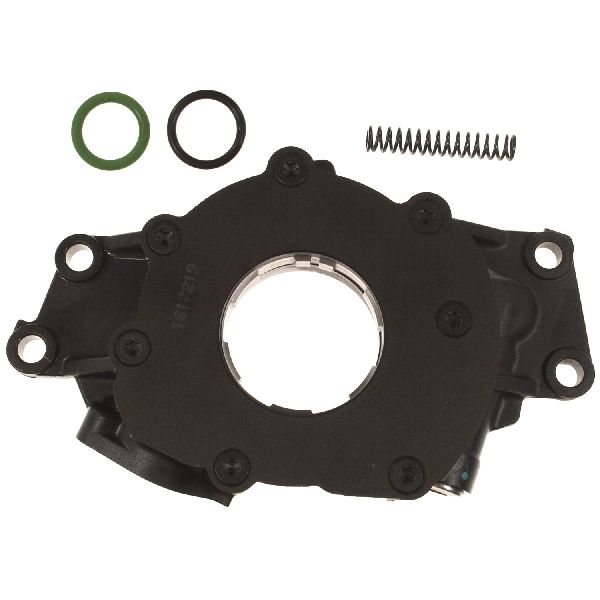

- 10295 High Performance, Standard Volume, High Pressure, Anodized Hardcoat Oil Pump With Gasket
- Performance
- Product Attributes:
- Oil Pump Pressure Type: High Pressure
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.340
- 9.00
- Manufactured For: Gm Ls
- Screen Information: 7/8" Bolt On
- Rotor Material: Steel
- Mounting Hole Quantity: 4
- Upgrade for Pump Number: M295
- Additional Pressure Over Stock Percentage: 10 Psi
- Oil Pump Volume Type: Standard Volume
- Manufactured Pressure: (red) 70 Psi
- Optional Spring Pressure 1: (blue) 60 Psi
- Gasket Or Seal Included: Yes
- Optional Spring Pressure 2: Copo 85 Psi
- Drive Type: Crankshaft
- Pickup Tube Diameter:
- 0.875
- 22.00
- Oil Pump Type: Rotary
-
Features:
- Includes optional +25 psi high pressure spring for the COPO Camaro engines.
- Stock Volume, 10 PSI increase in pressure over M295 oil pump.
- Uses 7/8" diameter standard bolt on screen
- Cast iron cover is CNC machined and phosphate coated.
- Cast aluminum housing is CNC machined and hardcoat anodized.
- The relief valve features a screw in valve plug.
- High pressure performance upgrade for M295.
- Includes o-rings for screen assembly.
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling 10295 high performance oil pump is a high pressure, standard volume upgrade of the M295. The cast aluminum housing is CNC machined and hardcoat anodized. The cast iron cover is CNC machined and phosphate coated for improved pump performance and durability. The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied. The oil pump and screen seals are included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
This Part Fits the Following OEM/Substitute Numbers:
10295
Additional Fitment Information:
| Vehicle | Engine VIN |
|---|---|
| 2009 - GMC Yukon XL 2500 | K |

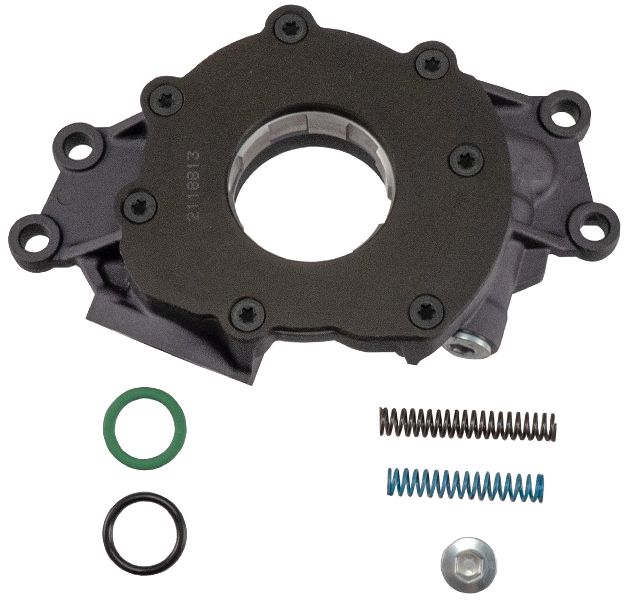

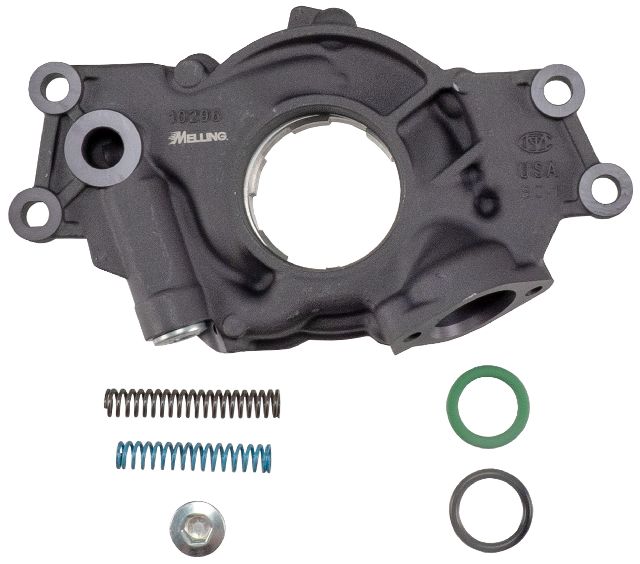

- High Performance Oil Pump
- 18% Higher Volume High Performance Oil Pump 10 PSI Higher Pressure Hard Coat Anodized Aluminum Housing Exclusive Rotor Design For Improved Strength Phosphate Coated Cast Iron Cover Includes Optional Standard And +25 PSI Pressure Springs Threaded Pressure Relief Nut Uses 7/8 Inch Stock Bolt-On Oil Pickup Tube Includes O-Ring For Oil Pickup Tube

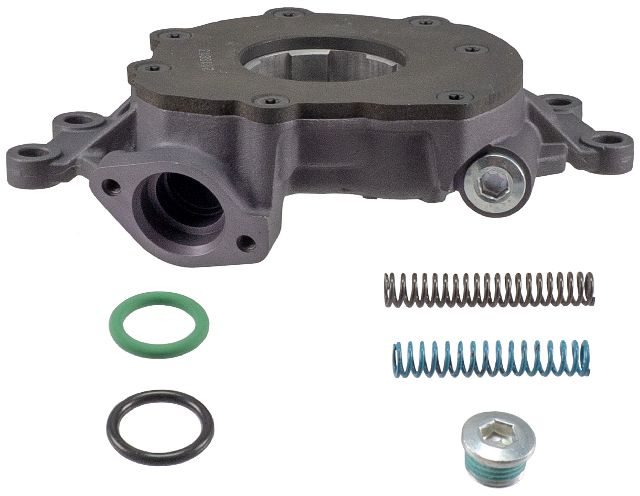

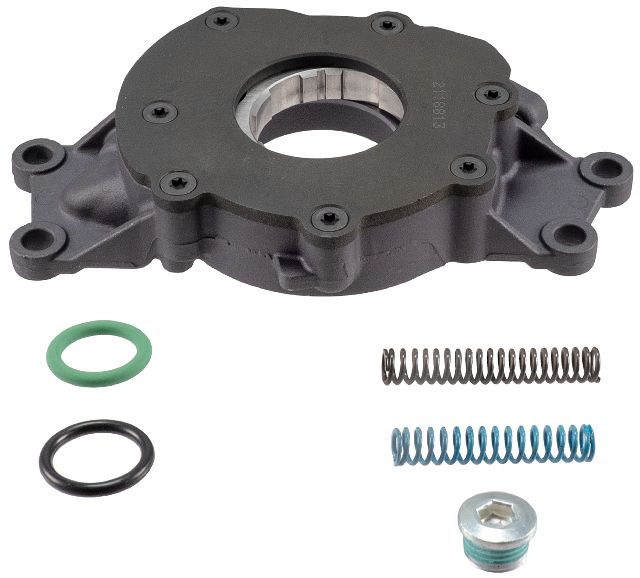

- 10296 High Performance, High Volume, Standard Pressure, Anodized Hardcoat Oil Pump With Gasket
- Performance
- Product Attributes:
- Oil Pump Pressure Type: Standard Pressure
- Additional Volume Over Stock Percentage: 18%
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.360
- 9.00
- Manufactured For: Gm Ls
- Screen Information: 7/8" Bolt On
- Rotor Material: Steel
- Mounting Hole Quantity: 4
- Upgrade for Pump Number: M295hv
- Oil Pump Volume Type: High Volume
- Manufactured Pressure: (red) 70 Psi
- Optional Spring Pressure 1: (blue) 60 Psi
- Gasket Or Seal Included: Yes
- Optional Spring Pressure 2: Copo 85 Psi
- Drive Type: Crankshaft
- Pickup Tube Diameter:
- 0.875
- 22.00
- Oil Pump Type: Rotary
-
Features:
- 18% increase in volume over M295 and 10295 oil pump.
- Cast aluminum housing is CNC machined and phosphate coated.
- Uses 7/8" diameter standard bolt on screen.
- High volume performance upgrade for M295HV.
- Cast aluminum housing is CNC machined and hardcoat anodized.
- Includes O-rings for screen assembly installation.
- The relief valve features a screw in valve plug.
- Includes installed +10 psi higher pressure relief spring and optional lower standard pressure relief spring.
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling 10296 high performance oil pump is a 18% high volume upgrade of the M296. The cast aluminum housing is CNC machined and hardcoat anodized. The cast iron cover is CNC machined and phosphate coated for improved pump performance and durability. The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied. The oil pump and screen seals are included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
This Part Fits the Following OEM/Substitute Numbers:
10296
Additional Fitment Information:
| Vehicle | Engine VIN |
|---|---|
| 2004 - Chevrolet Corvette | G |

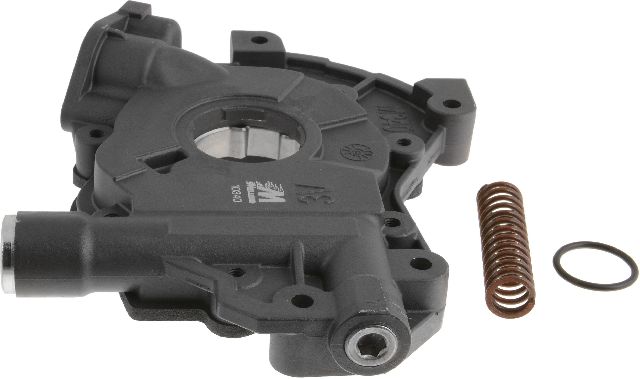

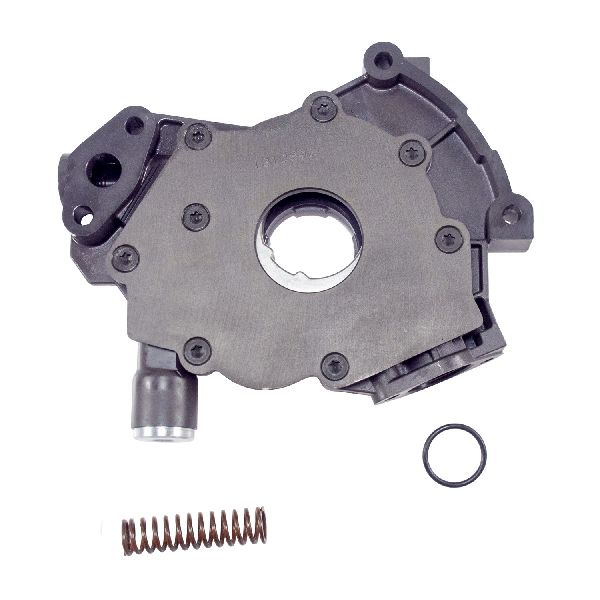

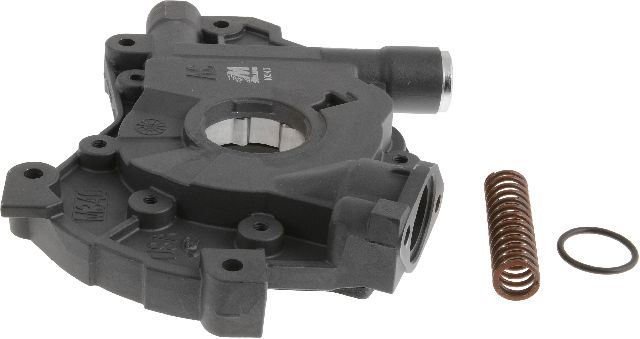

- High Performance Oil Pump
- Standard Volume High Performance Oil Pump Hard Coat Anodized Aluminum Housing Phosphate Coated Cast Iron Cover High Pressure (+20 PSI) Spring Installed Includes Optional Standard Pressure Spring Threaded Pressure Relief Nut Uses 15/16 Inch Stock Bolt-On Oil Pickup Tube Includes O-Ring For Oil Pickup Tube Assembly

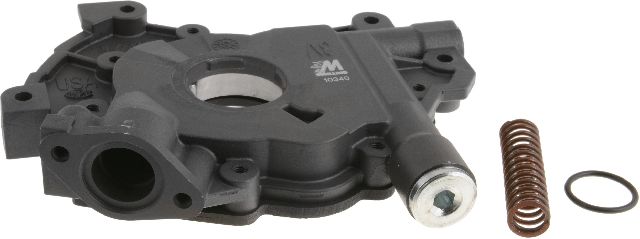

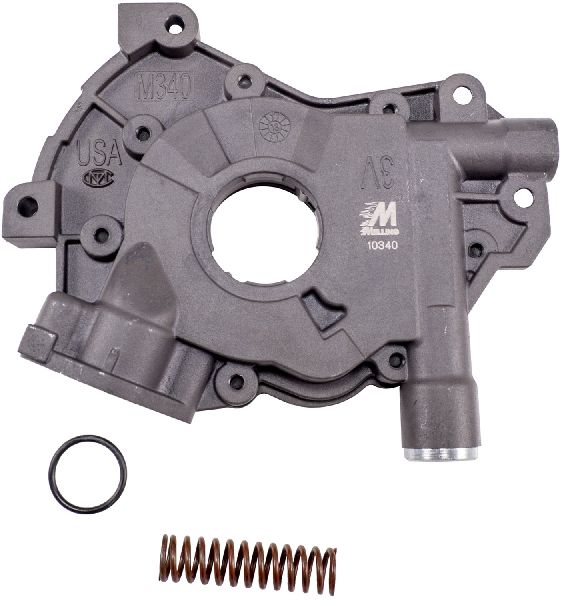

- 10340 High Performance, Standard Volume, High Pressure, Anodized Hard Coat Oil Pump With Gasket
- Performance
- Product Attributes:
- Oil Pump Pressure Type: High Pressure
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.270
- 7.00
- Manufactured For: Ford Modular
- Screen Information: 15/16" Bolt On
- Rotor Material: Powdered Metal
- Mounting Hole Quantity: 4
- Upgrade for Pump Number: M340, M360
- Additional Pressure Over Stock Percentage: 20 Psi
- Oil Pump Volume Type: Standard Volume
- Manufactured Pressure: (lt. Blue) 80 Psi
- Optional Spring Pressure 1: (brown) 60 Psi
- Gasket Or Seal Included: Yes
- Optional Spring Pressure 2: N/a
- Drive Type: Crankshaft
- Pickup Tube Diameter:
- 1.000
- 25.00
- Oil Pump Type: Rotary
-
Features:
- Uses 15/16" diameter pickup screen.
- Anodized hard coated body and a phosphate coated cover.
- Relief valve is retained with a threaded plug instead of a cup.
- Assembled using +20 psi spring and supplied with lower pressure standard spring.
- High pressue standard volume performance upgrade for the M340.
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling 10340 high performance oil pump is a high pressure, standard volume upgrade of the M340. The 10340 features an anodized hard coated aluminum body and cast iron phosphate coated cover for improved pump performance and durability. The relief valve has a pressure adjustable screw in plug instead of a cup plug. The oil pump screen mounting seal is included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
This Part Fits the Following OEM/Substitute Numbers:
10340
Additional Fitment Information:
| Vehicle | Cylinder Head Type | Valves | Engine VIN |
|---|---|---|---|
| 2007 - Ford Explorer Sport Trac | SOHC | 24 | 8 |

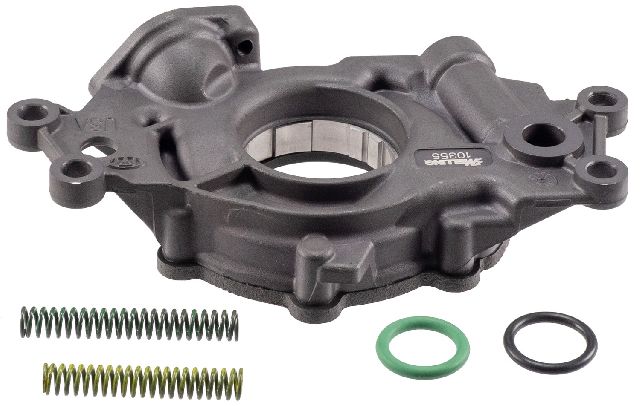

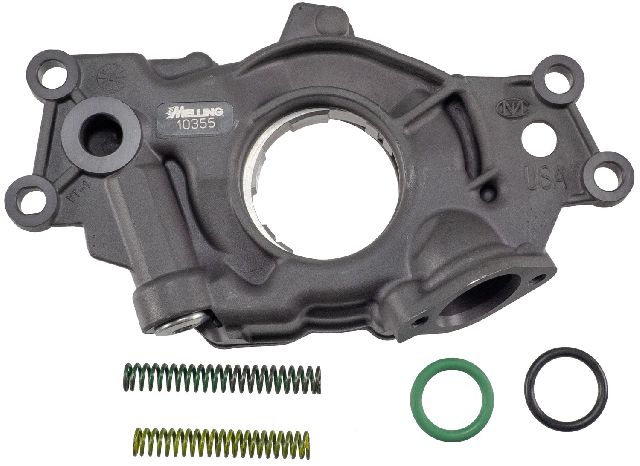

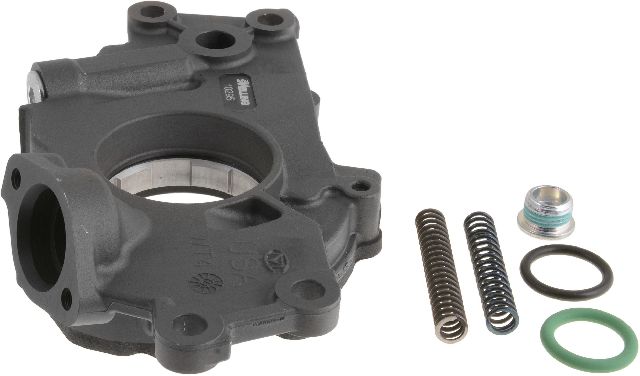

- High Performance Oil Pump
- Stock Volume +10 PSI Higher Pressure Over Stock Pressure, High Performance Oil Pump Hard Coat Anodized Aluminum Housing Phosphate Coated Cast Iron Cover Includes Optional Standard PSI And +20 PSI Pressure Springs Threaded Pressure Relief Nut Uses 7/8 Inch Stock Bolt-On Oil Pickup Tube Assembly Includes O-Rings For Oil Pickup Tube Assembly

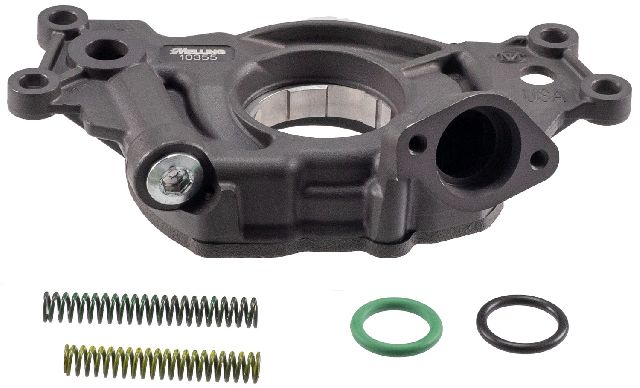

- 10355 High Performance, Standard Volume, High Pressure, Anodized Hardcoat Oil Pump With Gasket
- Performance
- Product Attributes:
- Oil Pump Pressure Type: High Pressure
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.360
- 9.00
- Manufactured For: Gm Ls
- Screen Information: 1.10" Bolt On
- Rotor Material: Steel
- Mounting Hole Quantity: 4
- Upgrade for Pump Number: M355, M365
- Additional Pressure Over Stock Percentage: 10 Psi
- Oil Pump Volume Type: Standard Volume
- Manufactured Pressure: (orange) 70 Psi
- Optional Spring Pressure 1: (yellow) 60 Psi
- Gasket Or Seal Included: Yes
- Optional Spring Pressure 2: (green) 80 Psi
- Drive Type: Crankshaft
- Pickup Tube Diameter:
- 0.875
- 22.00
- Oil Pump Type: Rotary
-
Features:
- Uses standard 7/8" diameter bolt on screen.
- High pressure performance upgrade for M365.
- Hard coat anodized body with a cast iron phoshate coated cover.
- 10 psi higher pressure over the M365.
- The relief valve features a screw in valve plug.
- Includes optional +20 psi pressure relief spring.
- Includes O-Ring For Screen Installation
- Cast Aluminum Housing
- Steeel Rotors
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling 10355 high performance oil pump is a standard volume upgrade of the M355. The 10355 features an anodized hard coated aluminum body and cast iron phosphate coated cover for improved pump performance and durability. Adjustable by pass pressure using optional spring. The relief valve has a pressure adjustable screw in plug instead of a cup plug. The oil pump and screen mounting seals are included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
This Part Fits the Following OEM/Substitute Numbers:
10355
Additional Fitment Information:
| Vehicle | Engine VIN |
|---|---|
| 2008 - Chevrolet Avalanche | Y |
- High Performance Oil Pump Screen
- Use with 8in Deep Oil Pan Bolt On Screen, May Require M-55085 Mounting Kit Screen Has 3/16 Inch To 1/4 Inch Up Or Down Adjustment
- High Performance Oil Pump Screen
- Performance
- Product Attributes:
- Tube Material: Galvanized Steel
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Mounting Hardware Included: No
- Flanged End: Yes
- Tube Length:
- 121.00
- 4.750
- Flange Mount Hole Quantity: 2
- Tube Inside Diameter:
- 0.750
- 19.00
- Pickup Screen Maximum Adjustment:
- 0.250
- 6.00
- Tube Shape: Straight
- Screen Material: Galvanized Steel
-
Features:
- Manufactured from high quality durable materials for long wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Made in USA. A new Melling high performance pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed high performance oil pump pick-up tube/screen be a part of every oil pump installation when a higher quality oil pump screen is required. Melling high performance oil pump pick-up tubes/screens are manufactured with stronger welds and in some cases designed with additional reinforced mountings, include mounting bolts and are supplied with protective coatings.
This Part Fits the Following OEM/Substitute Numbers:
12559
Additional Fitment Information:
| Vehicle |
|---|
| 1993 - Cadillac Commercial Chassis |

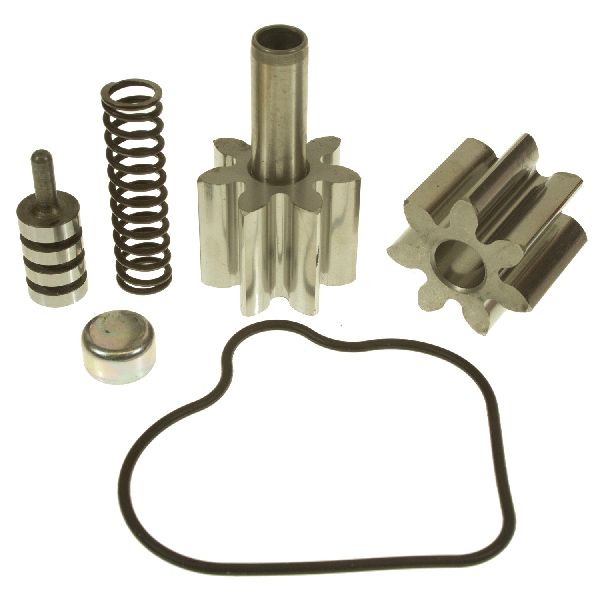

- Stock Replacement Oil Pump Repair Kit
- Stock Replacement Oil Pump Repair Kit
- Stock
- Product Attributes:
- Drive Gear Material: Powdered Metal
- Gasket Material: Nylon
- Gasket Type: Gasket
- Drive Gear Tooth Quantity: 7
-
Features:
- Designed for long-life and worry-free performance
- Components are manufactured from high quality materials for durable wear
- Includes components needed to rebuild a worn oil pump providing an alternative to purchasing a new oil pump
- Components are precision engineered for optimum fit and function
- Meets or exceeds original equipment specifications
- Made In USA. Melling oil pump repair kits are provided to supply the parts needed to rebuild a specific individual oil pump. Melling kits include all the required parts needed for a quality oil pump rebuild. Although Melling recommends the installation of a new oil pump, Melling oil pump repair kits are the preferred choice when a rebuilder has the desire to reuse the original oil pump casting or front timing cover. Kit Includes Drive Gear, Gear And Shaft Assembly, Oil Pump Body To Cover Seal.
This Part Fits the Following OEM/Substitute Numbers:
224-51380, 601-1984, 601-8145, DK-137, EK-137, EK137, K137, MK-8145, PK137, PK162
Additional Fitment Information:
| Vehicle | Engine VIN |
|---|---|
| 1991 - Ford Taurus | 4 |

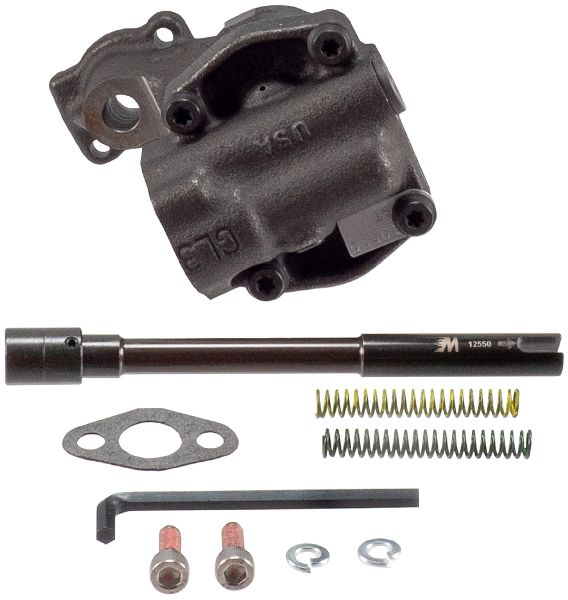

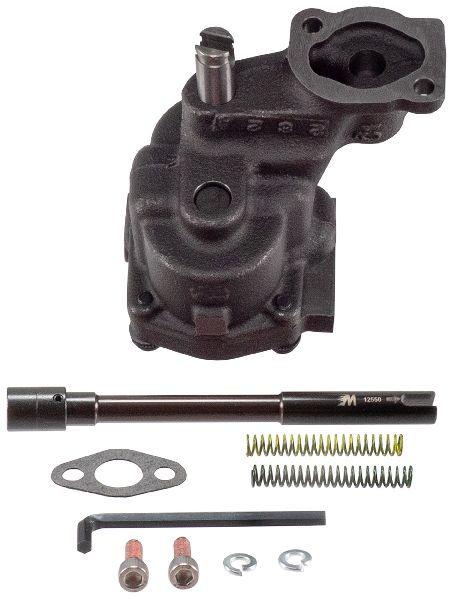

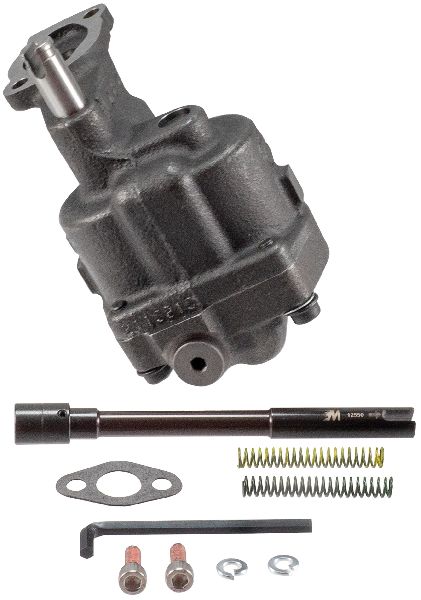

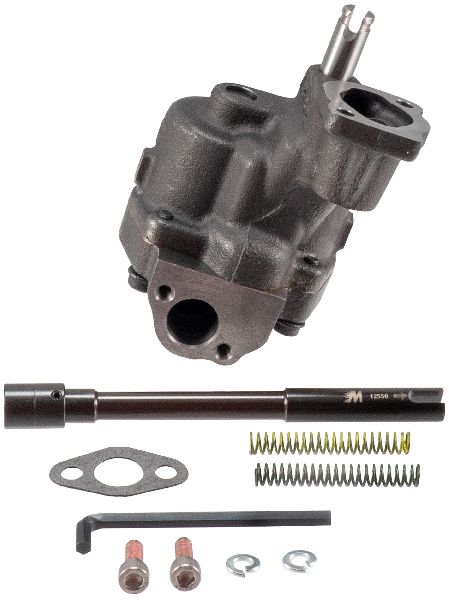

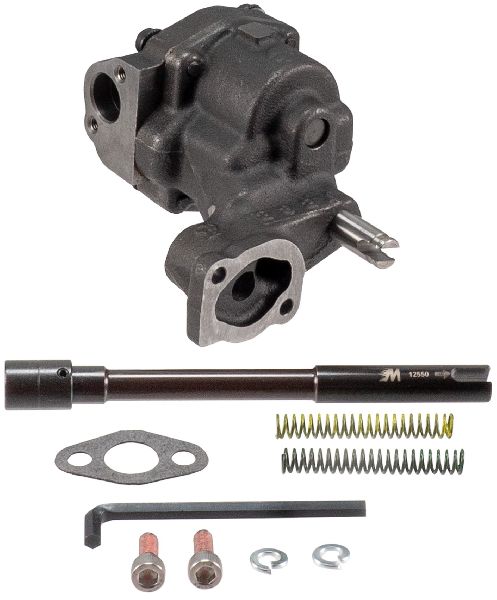

- High Performance Oil Pump
- 25% Higher Volume High Performance Oil Pump 10 PSI Higher Pressure Relief Spring Installed Exclusive Billet Steel Shark Tooth Helical Pump Gears Drive & Idler Shafts Extended Into Cover Includes 12550 Chrome Moly Steel Intermediate Shaft With Steel Guide Threaded Pressure Relief Nut Includes Optional Pressure Springs (-10 PSI And +10 PSI) Uses 3/4 Inch Diameter Press-Fit Or Bolt-On Pickup Tube Assembly (Not Included) Includes Oil Pump Pickup Tube Gasket, Assembly Bolts, And Wrench
- 10555ST High Performance, High Volume, High Pressure, Billet Steel Oil Pump With Gasket
- Performance
- Product Attributes:
- Oil Pump Pressure Type: High Pressure
- Additional Volume Over Stock Percentage: 25%
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.240
- 6.00
- Anti-Cavitation: No
- Manufactured For: Gm Sbc
- Screen Information: 3/4" Bolt On/press In
- Mounting Hole Quantity: 2
- Upgrade for Pump Number: N/a
- Additional Cover Shaft Support: Yes
- Gear Material: Billet Steel
- Oil Pump Volume Type: High Volume
- Manufactured Pressure: (pink) 70 Psi
- Optional Spring Pressure 1: (yellow) 58 Psi
- Gasket Or Seal Included: Yes
- Gear Type: Shark Tooth Helical Gear
- Optional Spring Pressure 2: (green) 80 Psi
- Drive Shaft Included: Yes
- Drive Type: Drive Shaft
- Pickup Tube Diameter:
- 0.750
- 19.00
- Oil Pump Type: Gear
-
Features:
- Extended drive and idler shaft for additional support in the cover eliminating dynamic shfaft deflection at increased RPM levels.
- Features billet steel "Shark Tooth" helical gears.
- Relief hole in cover uses screw in plug instead of pressed cup plug.
- Housing and Cover are CNC machined and phosphate coated.
- Includes +10PSI higher pressure relief spring and optional -10PSI relief spring.
- Screw in plug retains relief valve spring instead of pin.
- Cover is doweled to the pump housing to assure alignment of the shaft bores.
- Includes 12550 chrome moly intermediate shaft with steel guide.
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling high performance cast iron oil pump series features a doweled housing and cover, extended drive and idler shafts for additional support at increased RPM’s, a screw in relief spring plug, CNC machined cover and housing that is manganese phosphate coated, standard volume and high volume patented billet Shark Tooth gears, and a chrome moly drive shaft with steel guide. Includes lower pressure spring and self locking socket head bolts with wrench for use with bolt on screen pumps. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance Shark Tooth oil pumps are recommended for all applications where a high performance oil pump is needed.
This Part Fits the Following OEM/Substitute Numbers:
10555ST
Additional Fitment Information:
| Vehicle | Engine VIN | Engine Version |
|---|---|---|
| 1979 - Buick Skylark | G | Chevrolet |

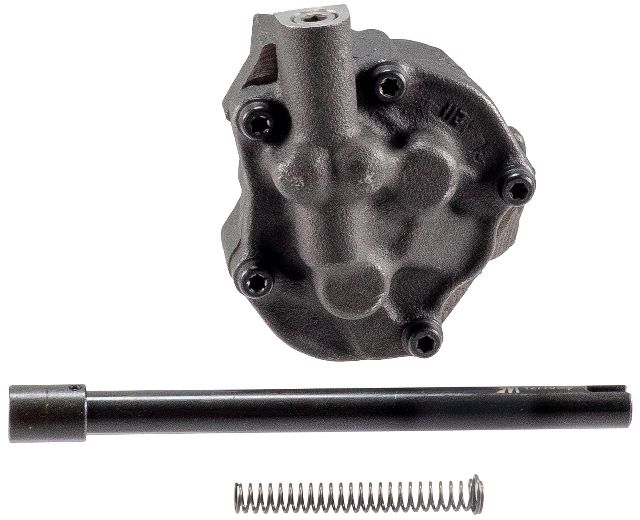

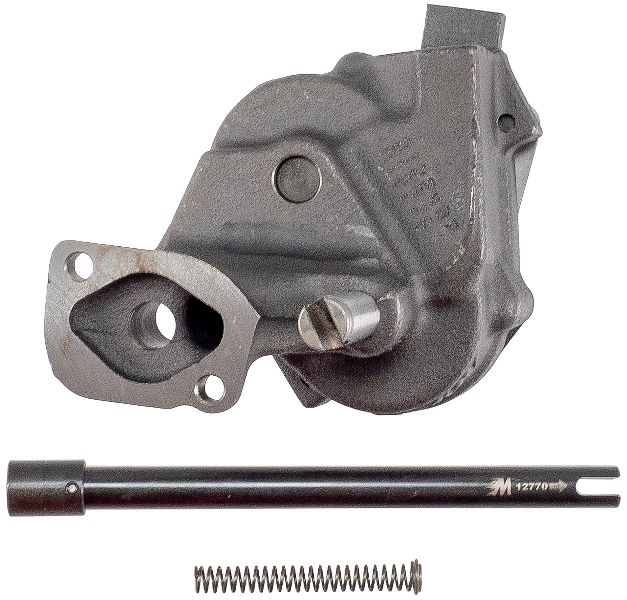

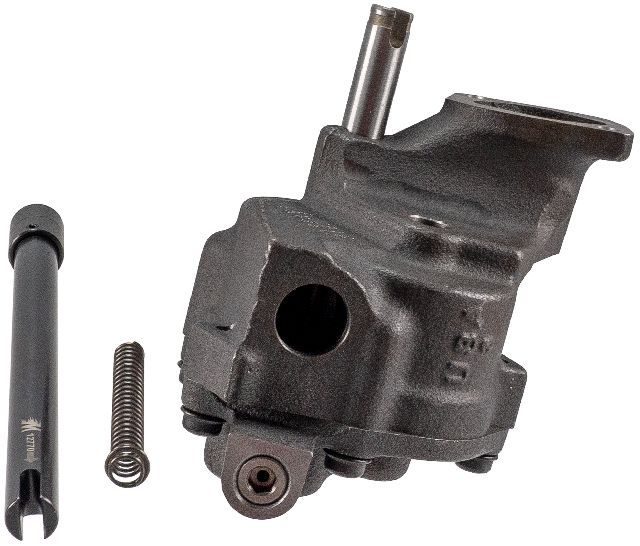

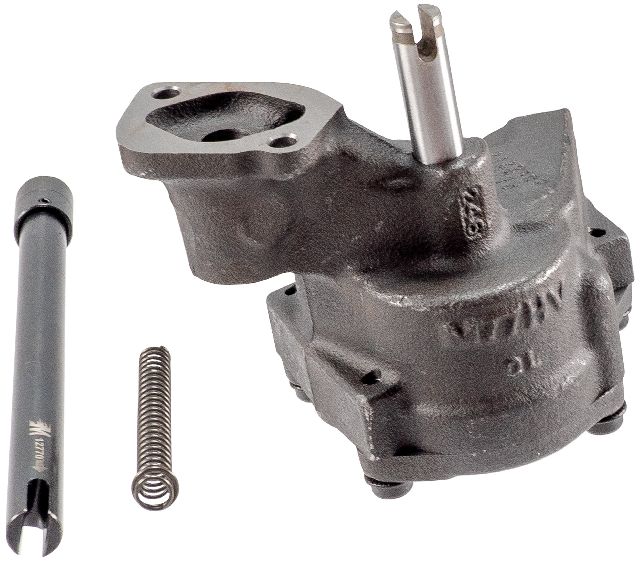

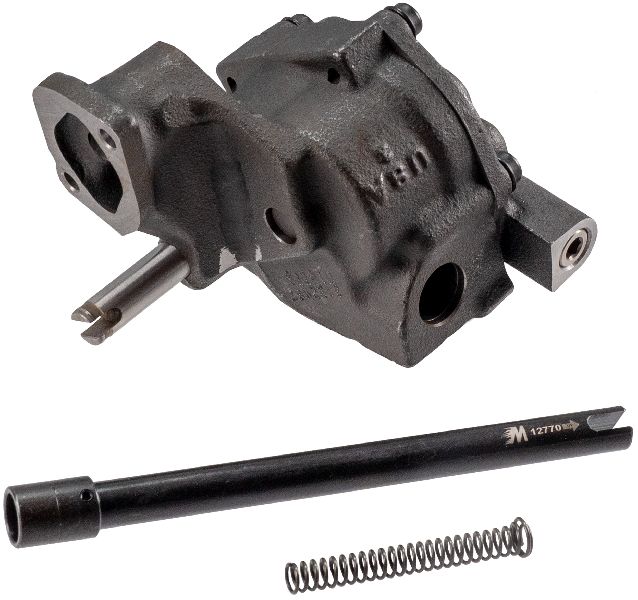

- High Performance Oil Pump
- 25% Higher Volume High Performance Oil Pump 15 PSI Higher Pressure Relief Spring Installed Billet Steel Pump Gears Drive & Idler Shafts extended Into Cover Includes 12770 Chrome Moly Steel Intermediate Shaft With Steel Guide Includes Optional Standard Pressure Spring Uses 3/4 Inch Diameter Press-Fit Pickup Tube Assembly (Not Included)
- 10778 High Performance, High Volume, High Pressure, Billet Steel Oil Pump
- Performance
- Product Attributes:
- Oil Pump Pressure Type: High Pressure
- Additional Volume Over Stock Percentage: 25%
- Adjustable Bypass Pressure: Yes
- Alternate Pressure Springs Included: Yes
- Grade Type: Performance
- Mounting Hole Diameter:
- 0.240
- 6.00
- Anti-Cavitation: No
- Manufactured For: Gm Bbc
- Screen Information: 3/4" Press In
- Mounting Hole Quantity: 2
- Upgrade for Pump Number: 10770
- Additional Cover Shaft Support: Yes
- Gear Material: Billet Steel
- Oil Pump Volume Type: High Volume
- Manufactured Pressure: (pink) 70 Psi
- Optional Spring Pressure 1: (plain) 52 Psi
- Gasket Or Seal Included: No
- Gear Type: Spur Gear
- Optional Spring Pressure 2: N/a
- Drive Shaft Included: Yes
- Drive Type: Drive Shaft
- Pickup Tube Diameter:
- 0.750
- 19.00
- Oil Pump Type: Gear
-
Features:
- Includes +15 PSI higher pressure relief spring installed and optional standard pressure relief spring.
- Extended drive and idler shaft for additional support in the cover eliminating dynamic shfaft deflection at increased RPM levels.
- Billet steel gears.
- Cover is doweled to the pump housing to assure alignment of the shaft bores.
- 25% volume increase over standard oil pump.
- Includes 12770 chrome moly intermediate shaft with steel guide.
- Cast Iron Housing
- High volume performance upgrade for the 10770.
- Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. High volume performance upgrade for the 10770. Increase in volume of 25% over stock oil pump. The drive shaft has been manufactured from chrome-moly steel. The drive and idler shafts have been extended to allow for additional support in the cover. Additional support eliminates dynamic shaft deflection at increased RPM levels. The cover is doweled to the pump housing to assure alignment of the shaft bores. The relief valve has a screw-in plug instead of a pin. The housing and cover are CNC machined and phosphate coated. An additional spring, the original stock replacement is supplied which will reduce bypass pressure if needed. Includes 12770 chrome moly intermediate shaft with steel guide. Built with billet steel gears. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
This Part Fits the Following OEM/Substitute Numbers:
10778, DM-77HVP
Additional Fitment Information:
| Vehicle |
|---|
| 1977 - Chevrolet C20 Suburban |

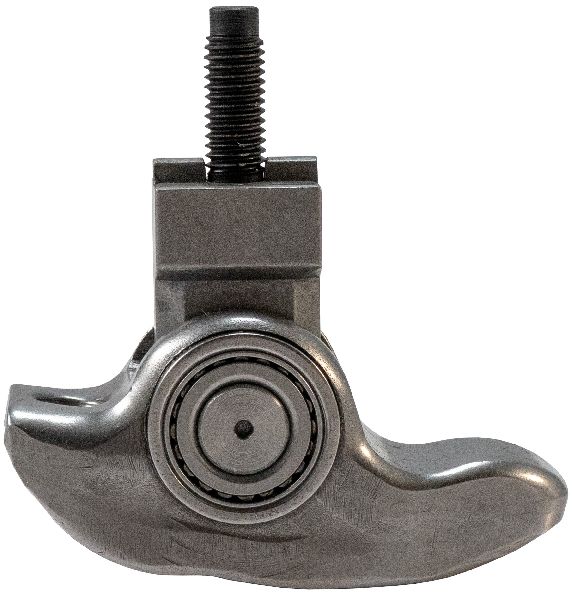

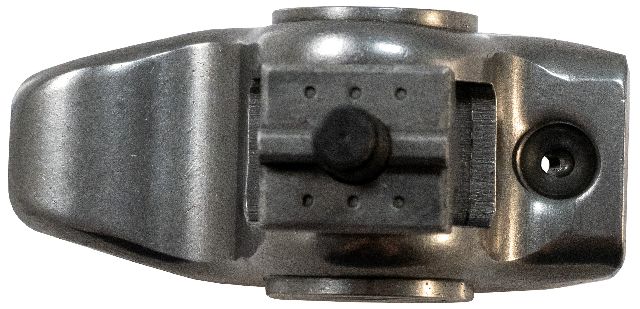

- Stock Replacement Rocker Arm
- 8mm Bolt
- Stock Replacement Rocker Arm
- Stock
- Product Attributes:
- Rocker Arm Finish: Anti-rust
- Grade Type: Standard Replacement
- Stud Thread Diameter: 8.0
- Self Aligning: Yes
- Shims Included: No
- Rocker Arm Material: Cast Steel
- Material: Cast Steel
- Rocker Arm Type: Roller
-
Features:
- Designed for long-life and maintenance free performance
- Manufactured from high quality durable materials for long wear
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
- Melling lists rocker arms for both domestic and import applications. Depending on OEM design specifications, Melling rocker arms are provided in either stamped or cast materials. Each rocker arm is built from only the best materials and manufacturing processes available. Melling recommends installing new rocker arms and components with every engine rebuild to assure long engine life and the most efficient performance.
-
Suggested Purchase Quantity: 12
- Most jobs typically require 12 of this item.
This Part Fits the Following OEM/Substitute Numbers:
12567621, 12576628, 12594509, 180-1329, 19333180
Additional Fitment Information:
| Vehicle | Engine VIN |
|---|---|
| 2003 - Buick Century | J |

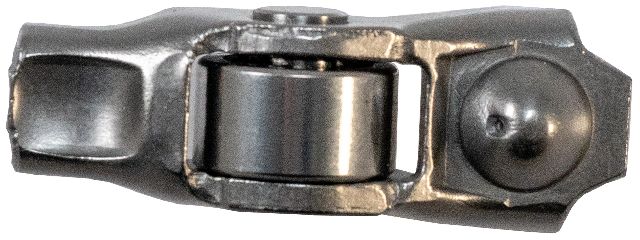

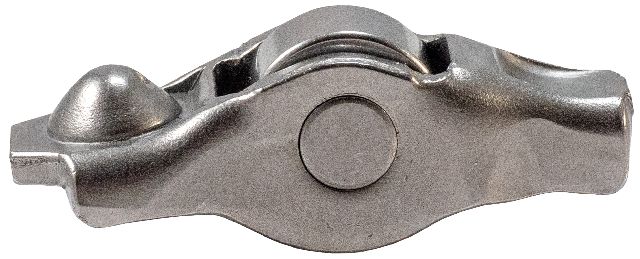

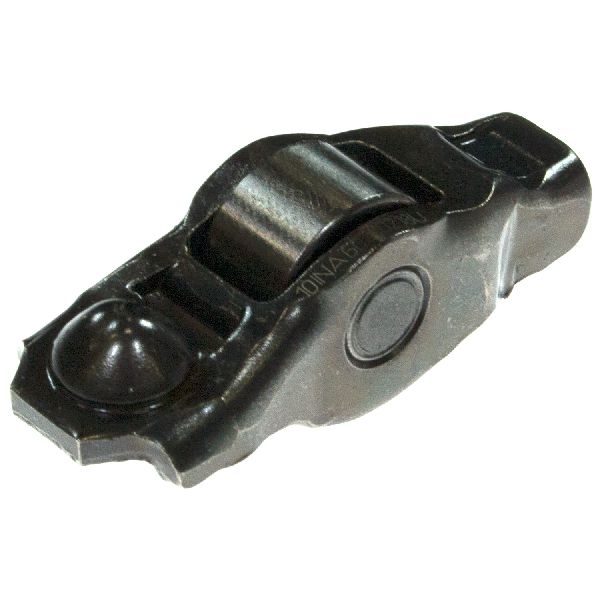

- Stock Replacement Rocker Arm
- Stock Replacement Rocker Arm
- Stock
- Product Attributes:
- Rocker Arm Finish: Anti-rust
- Grade Type: Standard Replacement
- Self Aligning: Yes
- Shims Included: No
- Rocker Arm Material: Cast Steel
- Material: Cast Steel
- Rocker Arm Type: Roller
-
Features:
- Designed for long-life and maintenance free performance
- Manufactured from high quality durable materials for long wear
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
- Melling lists rocker arms for both domestic and import applications. Depending on OEM design specifications, Melling rocker arms are provided in either stamped or cast materials. Each rocker arm is built from only the best materials and manufacturing processes available. Melling recommends installing new rocker arms and components with every engine rebuild to assure long engine life and the most efficient performance.
-
Suggested Purchase Quantity: 24
- Most jobs typically require 24 of this item.
This Part Fits the Following OEM/Substitute Numbers:
180-1332, 5184 296AE, 5184 296AF, 5184 296AH, 5184296AF, 7B0 109 441 B, MR-1332, R-9123
Additional Fitment Information:
| Vehicle | Cylinder Head Type | Engine VIN |
|---|---|---|
| 2011 - Volkswagen Routan | DOHC | G |
Showing 1 - 10 of 26 products
Loading...
